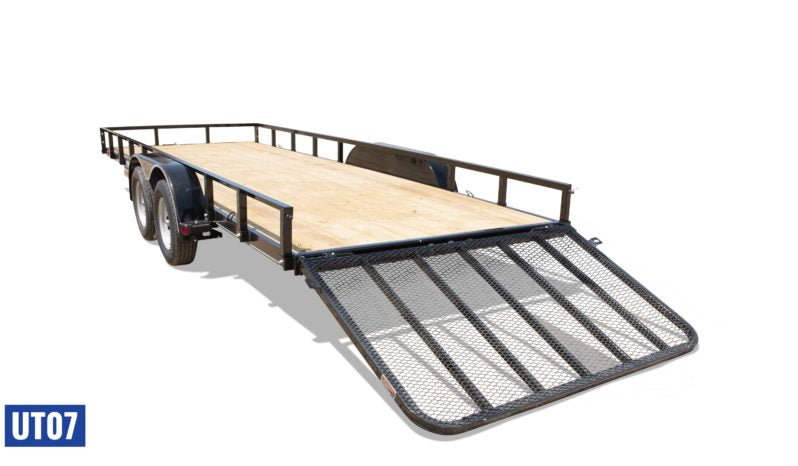

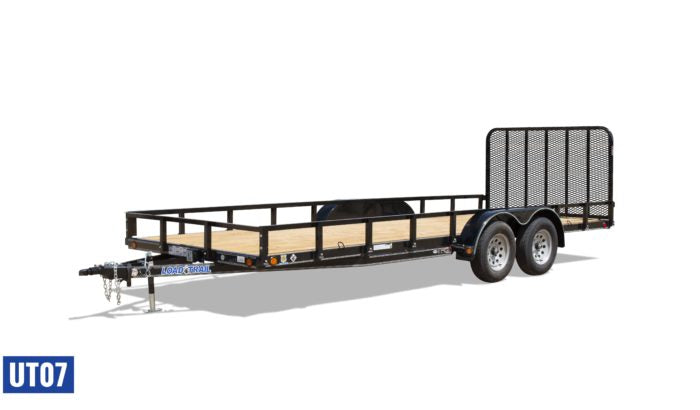

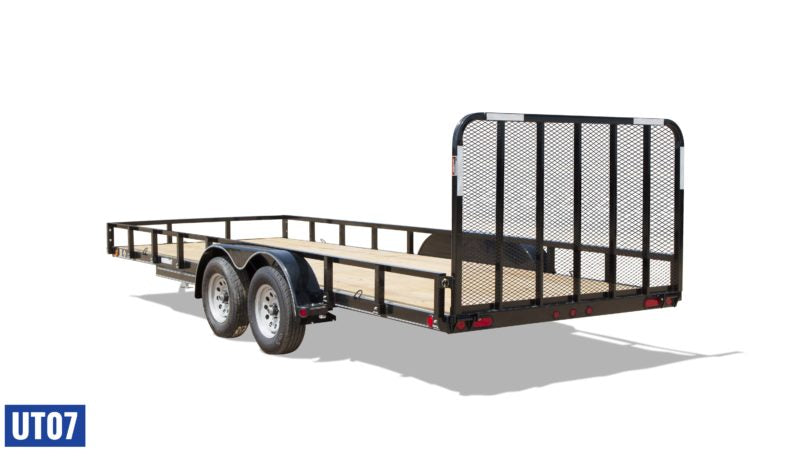

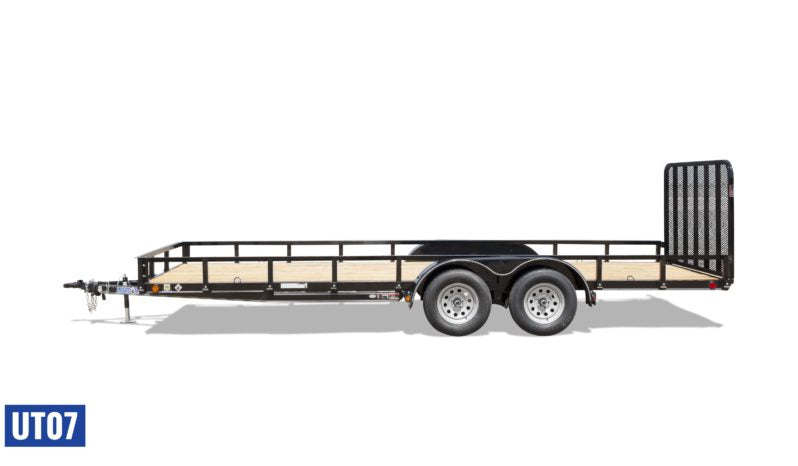

Load Trial UT | CHANNEL FRAME UTILITY


Price:
Sale price$5,190.75

Description

Description:

Specifications:

  • General Vehicle Weight Ratings (GVWR)
  • G.V.W.R.: 7,000 lbs
  • G.A.W.R.: 3,500 lbs per axle
  • Dimensions
  • Length: 10′ to 22′
  • Width: 60″ to 102″
  • Deck Height: 21″
  • Axles
  • Axles: (2) 3,500 lb Dexter with Electric NEV-R-ADJUST Brakes
  • Suspension: Multi-Leaf Spring
  • Coupler & Hitch
  • Coupler: 2″ A-frame (7K)
  • Jack: 5,000 lb Top-wind
  • Load Capacity & Weight
  • Load Capacity: N/A (Load capacity not specified)
  • Estimated Weight: 1,098 – 2,380 lbs (depending on trailer size)
  • Construction Features
  • Tongue: 4″ Channel
  • Frame: 4″ Channel
  • Crossmembers: 2″ x 2” Angle Iron, 24” On-center
  • Tires and Wheels
  • Wheels: 15” 5-Hole Wheels
  • Tires: ST205/75 R15 LRC
  • Deck Features
  • Side Rails: Removable 2″ x 2” Square Tube with 2″ x 2″ Tube Uprights
  • Deck: Straight Deck with Board Slides
  • Fenders: Removable Smooth Plate
  • Floor: Treated Wood
  • Additional Features
  • U-Hooks: (4) 3/8″ x 2.75″ Cargo Tie-downs
  • Lights: LED Stop, Tail, & Clearance Lights
  • Wiring: 16 Ga. 5-Way Double-Insulated Wire Harness
  • Plug: 7-way Plug
  • Safety Chains: (2) 5/16″ x 29″ Grade 30
  • Finish & Durability
  • Pretreatment: Mechanical and/or Chemical Pretreatment for Maximum Paint Adhesion
  • Finish: (Black) Sherwin-Williams Powdura OneCure, Primer with Polyester TGIC Gloss Powder Topcoat
  • Available Size & Weight
  • UT8318032: 83″ x 18′, 1,965 lbs

Width Weight Height Length
0 Inch 1965 Pounds 0 Inch 0 Inch
